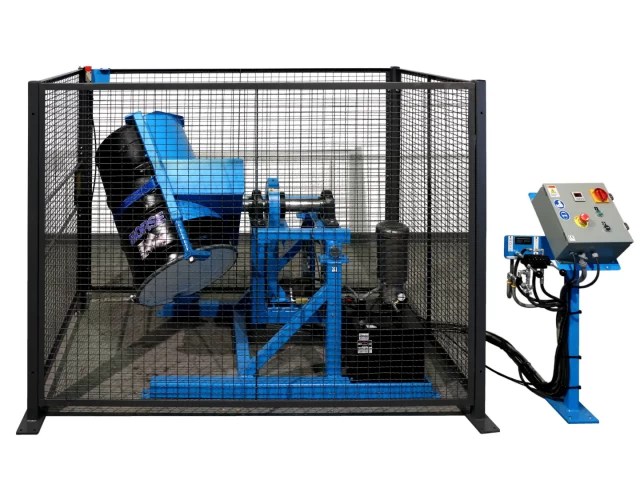

311 Series Automated
Tilt-To-Load Drum Tumblers
Program 311 Series Drum Tumblers to automatically lift a drum, rotate for the time you set to mix drum contents, and then return the drum to upright position at floor-level for easy handling.
Each Automated Drum Tumbler includes the Controls and Enclosure with Safety Interlock.
The ultimate in 55-gallon (210 liter) drum mixing equipment.
- Tumble a steel, plastic or fiber drum from 29″ to 37″ (74 to 94 cm) tall
- Tumble drum from 18″ to 23.5″ (46 to 60 cm) in diameter
- Easily load upright drum at floor level
- Variable Speed Drum Rotation
- Set desired time of drum rotation from a few seconds to 16 hours
- Control Package and Guard Enclosure Kit are included
| Model | Type | Capacity | Motor Style | Operation | Voltage | Speed |
|---|---|---|---|---|---|---|
| 311-1-115 | Single Drum with Enclosure and Interlock | 800 Lbs. | 60 Hz | 1-Phase | 115V | variable speed 5-20 rpm |
| 311-1-220-50 | Single Drum with Enclosure and Interlock | 800 Lbs. | 50 Hz | 1-Phase | 220V | variable speed 4-16 rpm |
| 311-1-230 | Single Drum with Enclosure and Interlock | 800 Lbs. | 60 Hz | 1-Phase | 230V | variable speed 5-20 rpm |
| 311-3-230 | Single Drum with Enclosure and Interlock | 800 Lbs. | 60 Hz | 3-Phase | 230V | variable speed 5-20 rpm |
| 311-3-230-50 | Single Drum with Enclosure and Interlock | 800 Lbs. | 50 Hz | 3-Phase | 230V | variable speed 4-16 rpm |
| 311-3-400-50 | Single Drum with Enclosure and Interlock | 800 Lbs. | 50 Hz | 3-Phase | 400V | variable speed 4-16 rpm |
| 311-3-460 | Single Drum with Enclosure and Interlock | 800 Lbs. | 60 Hz | 3-Phase | 460V | variable speed 5-20 rpm |
| 311-3-575 | Single Drum with Enclosure and Interlock | 800 Lbs. | 60 Hz | 3-Phase | 575V | variable speed 5-20 rpm |
311-1-115 311-1-220-50 311-1-230 311-3-230 311-3-230-50 311-3-400-50 311-3-460 311-3-575
Contact us today for pricing and delivery information
call 800-575-4835 • email sales@handlingconcepts.com
